Overview

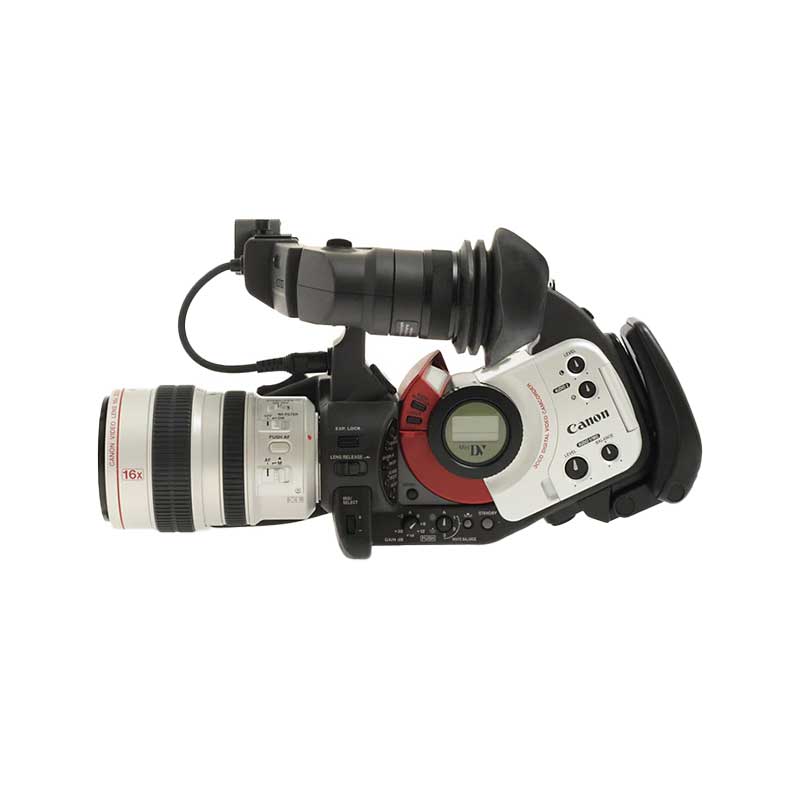

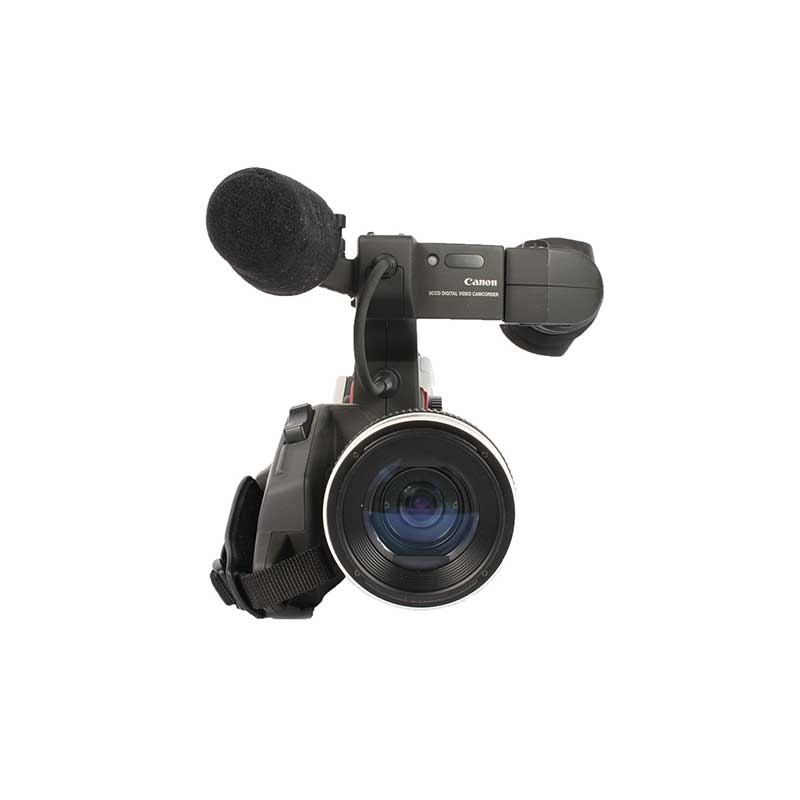

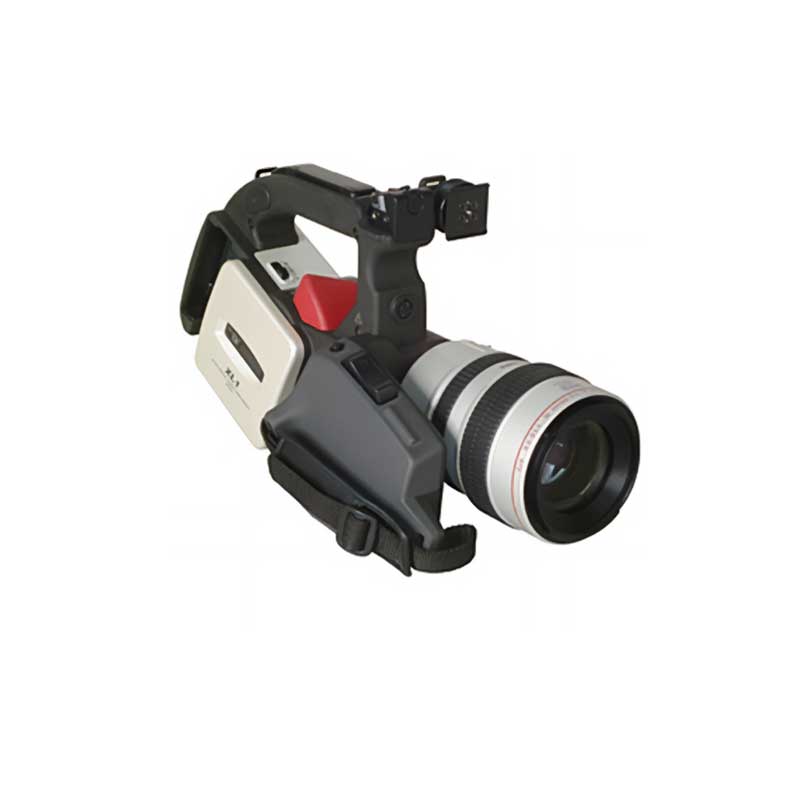

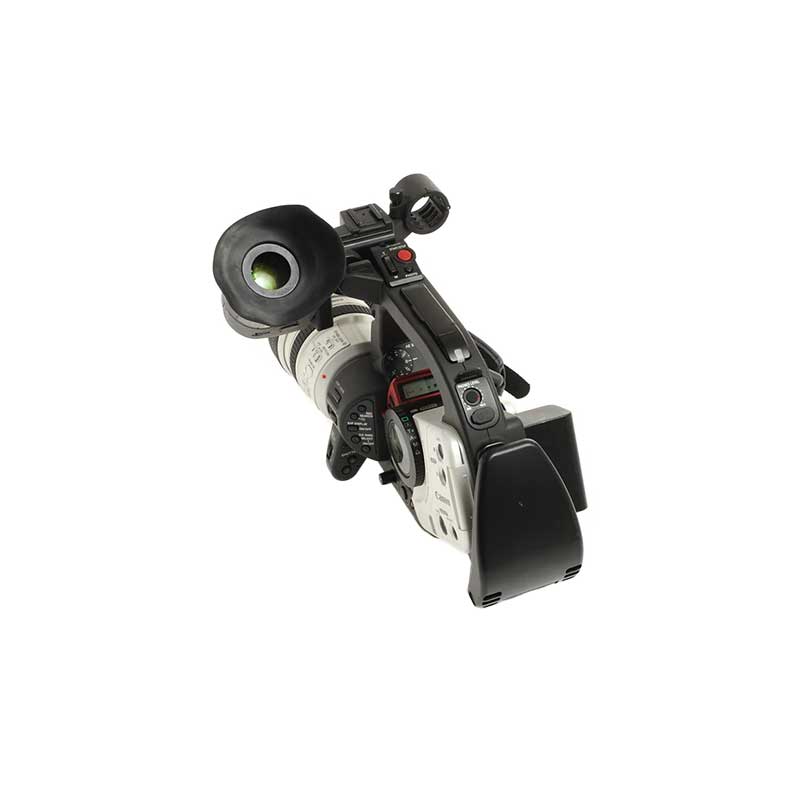

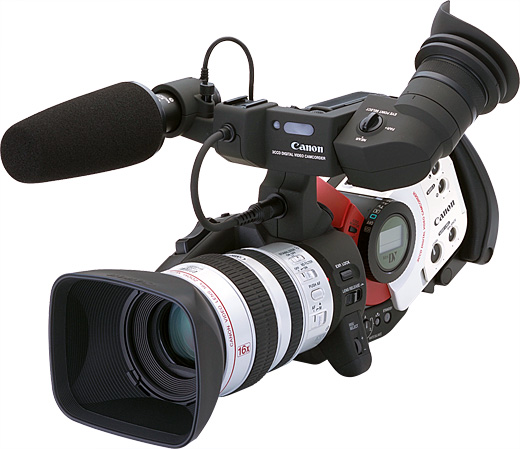

The XL1S is a 2001 standard-definition camcorder in Canon's XL line, recording to minidv. It pairs a 1/3" 0.27MP 3CCD pixel shift sensor with a 16x optical zoom. Stabilization is optical.
Specifications
Optics
| Optical zoom | 16x | Maker, web.archive.org |
|---|---|---|
| Focal length | 5.5 - 88mm (XL 5.5-88mm IS II) | Maker, web.archive.org |
| Lens thread | 72mm (XL lens) | Maker, gdlp01.c-wss.com |
| SteadyShot | Optical (XL 5.5-88mm IS II) | Maker, gdlp01.c-wss.com |
| Light | No | Maker, gdlp01.c-wss.com |
Imaging and display
| Image sensor | 1/3" 0.27MP 3CCD pixel shift | Maker, gdlp01.c-wss.com |
|---|---|---|
| LCD | No | Maker, gdlp01.c-wss.com |
| Viewfinder | Color | Maker, gdlp01.c-wss.com |
Audio
| Audio | 2 channels + mic jack + headphone jack | Maker, gdlp01.c-wss.com |
|---|---|---|
| Accessory shoe | Accessory shoe | Maker, gdlp01.c-wss.com |
Storage and transfer
| Built-in memory | No | Maker, gdlp01.c-wss.com |
|---|---|---|
| Memory Stick slot | No | Maker, gdlp01.c-wss.com |
| Card type | No | Maker, gdlp01.c-wss.com |
| AV input recording | Yes | Maker, gdlp01.c-wss.com |
| USB output | No | Maker, gdlp01.c-wss.com |
Power and connectivity
| Battery | BP-930 | Maker, gdlp01.c-wss.com |
|---|---|---|
| Wi-Fi | No | Maker, gdlp01.c-wss.com |
Recording
| Recording modes | DV SP: 80 min (80 min cassette) | Maker, gdlp01.c-wss.com |
|---|
Market
| Video standard | NTSC (assumed, not stated in the source) | Unchecked |
|---|
Features
Headphone jack, Microphone input, Accessory shoe, Viewfinder.
