Overview

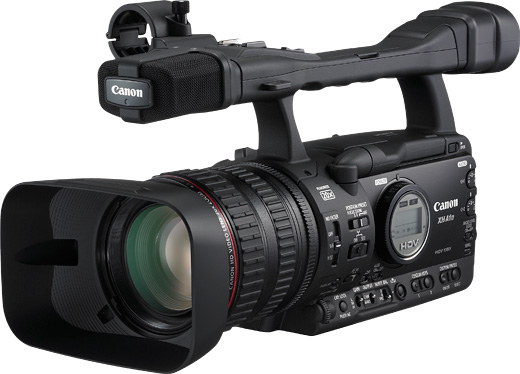

The XH A1S is a 2008 high-definition camcorder in Canon's XH line, recording to hdv. It pairs a 1/3" 1.67MP 3CCD 16:9 sensor with a 20x optical zoom. Stabilization is optical.
Specifications
Optics
| Optical zoom | 20x | Maker, web.archive.org |
|---|---|---|
| 35mm equivalent | 32.5 - 650mm (16:9) 39.8 - 796mm (4:3) | Maker, gdlp01.c-wss.com |
| Focal length | 4.5 - 90mm | Maker, gdlp01.c-wss.com |
| Lens thread | 72mm | Maker, web.archive.org |
| SteadyShot | Optical | Maker, web.archive.org |
| Light | No | Maker, web.archive.org |
Imaging and display
| Image sensor | 1/3" 1.67MP 3CCD 16:9 | Maker, web.archive.org |
|---|---|---|
| LCD | 2.8" 16:9 207k dot | Maker, web.archive.org |
| Viewfinder | Color | Maker, web.archive.org |
Audio
| Audio | 2 channels + mic jack + headphone jack + XLR | Maker, web.archive.org |
|---|---|---|
| Accessory shoe | Hot shoe | Maker, gdlp01.c-wss.com |
Storage and transfer
| Built-in memory | No | Maker, web.archive.org |
|---|---|---|
| Memory Stick slot | No | Maker, web.archive.org |
| Card type | SD/SDHC/MMC (stills only) | Maker, web.archive.org |
| AV input recording | Yes | Maker, web.archive.org |
| USB output | No | Maker, web.archive.org |
Power and connectivity
| Battery | BP-950G | Maker, gdlp01.c-wss.com |
|---|---|---|
| Wi-Fi | No | Maker, web.archive.org |
Recording
| Recording modes | HDV 1080i: 80 min (60 min cassette) | Maker, web.archive.org |
|---|
Market
| Video standard | NTSC (assumed, not stated in the source) | Unchecked |
|---|
Features
Headphone jack, Microphone input, Accessory shoe, Viewfinder.
